Rotax voltage regulator – CARR5115

$264.10

Improved MOSFET Rotax Voltage Regulator / Rectifier
More effective and gets less warm than the original regulator rectifier, therefore more reliable!
Suitable for lithium ion batteries!
14,6V / 39A

You can download the images as a pdf-file via this link.

Category: SKU: CARR5115 VQ

Description

This regulator rectifier is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Rotax 912
Rotax 914
Rotax 912UL
Rotax 914UL

OEM numbers:
343620
362001
Ducati Energia Charging System

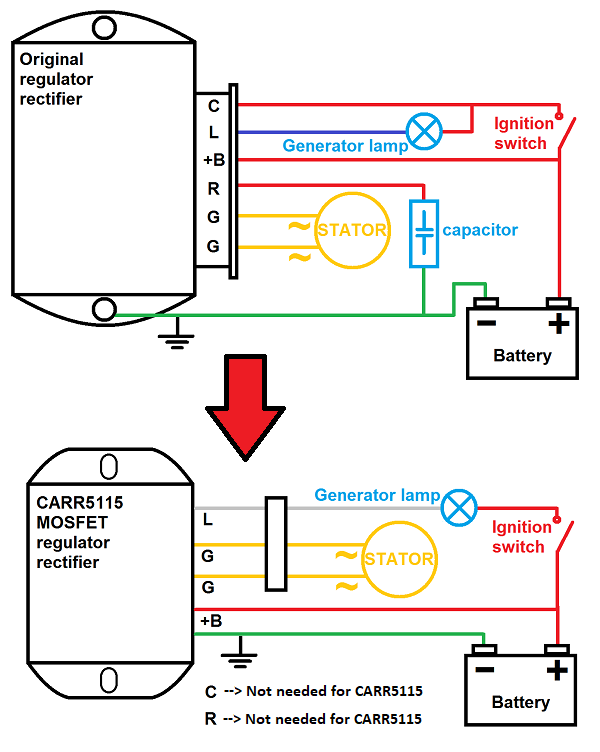

12V power and ground leads directly to the battery for a direct current flow to prevent loss of power through an extra connector.
Connection ‘R’ is not needed when you use this improved MOSFET regulator rectifier.
The capacitor can be removed in the new situation.
Also connection ‘C’ is not needed because the regulator rectifier switches off automatically when there is no input from the generator stator.

CARR5115 Rotax MOSFET Voltage regulator rectifier (343620, 362001) + Contra
Model: CARR5115-CARC018-3
CARR5115-343620-362001-CONTRA-MOSFET
000.105.050 S60 35
