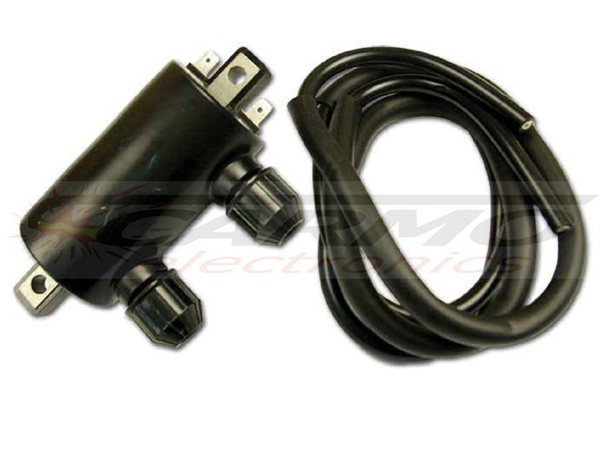

ignition coil – HT75 – TCI

$159.12

High performance improved 12V igniton-coil with two outputs twin-ignition-coil (Universal)

100mm hole spacing

This coil produces 72,000 volts to the spark plugs for a hotter and longer lasting spark for faster starts, better fuel economy and more power. Dual output coils do not have polarity, so power feed wires can go to either terminal.

Ultimate High Output Replacement Coil.
Replaces stock factory Tci ignition coils.
Primary resistance 2.5 Ohms (range 2.0 to 3.5)
Secondary resistance 14.5K Ohms (Range 12 to 20 K Ohms)
6.6mm mounting holes spaced at 102mm mounting holes center to center.
Dimensions: 1-3/4″ OD x 5″ Long w/ 4″ Between Mounting Holes

– We provide a wide range of electrical components to fit new and older Japanese and European motorcycles.
– All products are made from high quality, high temperature materials which have proven to be very reliable.
– Our products offer higher power output than OEM counterparts.
– Products are new, eliminating the need for customers to send in the old ones.

Vectriq

Category: SKU: CARHT075 VQ

Description

This ignition coil is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda SOHC – 1969 1970 1971 1972 1973 1974 1975 1976 1977 1978
Honda CB500 –
Honda CB550 –
Honda CB750 –
Honda VT500 1983 1984 1985 1986 1987 1988
Honda VT500C 1983 1984 1985 1986 1987 1988
Honda VT500FT 1983 1984
Honda VT700 – 1984 1985 1986 1987
Honda VT700C – 1984 1985 1986 1987
Honda VT750 – 1983 1984 1985 1986 1987
Honda VT750C – 1983 1984 1985 1986 1987
Honda VT800 – 1988
Honda VT800C – 1988
Yamaha XS1 – 1970 1971
Yamaha XS2 – 1972
Yamaha XS650 – 1975 1976 1977 1978 1979 1980 1981
Yamaha XS650S – 1978 1979 1980 1981 1982 1983 1984
Yamaha XS650L – 1983

30510-ME9-013
30510ME9013

Model: CARHT075 Ignition Coil
000.049.000 S40 20
