Description

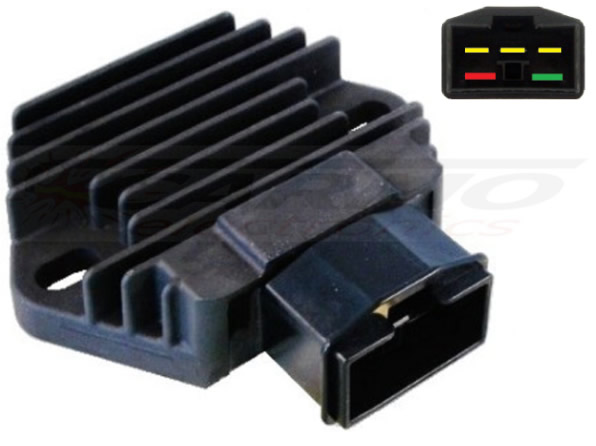

This regulator rectifier is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Honda NHX110 Lead 4T (2008-2010)
Honda CBR125R CBR125 R (2004-2005)
Honda CBR125RS (2005-2006)
Honda CBR125RW (2005-2006)
Honda FES125 Pantheon 2T (1998-2002)
Honda NES125 (2000-2006)
Honda NSR125F (1993)
Honda NSR125R NSR125 R (1993-2001)
Honda SES125 Dylan (2002-2004)
Honda SH125 (2001-2004)
Honda VT125C Shadow (1999-2006)
Honda XL125V Varadero (2001-2006)
Honda FES150 Pantheon 2T (1998-2002)
Honda NES150 (2000-2006)
Honda SES150 Dylan (2002-2004)
Honda SH150 (2001-2004)
Honda CB250 NightHawk (1991-2008)
Honda CB250 Two Fifty (1992-2004)
Honda CB250F Hornet (1996)
Honda CBR250R CBR250 R (1988-2013)
Honda CBR250RR (1990-1999)
Honda CRF250L CRF250 L (2013-2014)
Honda FES250 Foresight (1998-2005)
Honda NSR250R (1990-1995)
Honda NSS250 Jazz (2003-2004)
Honda NSS250 Reflex (2001-2003)
Honda CB400F (CB-1) (1989-1990)
Honda CBR400RR CBR400 (1988-1994)
Honda NT400 Bros (1988-1990)
Honda RVF400R (1994-1996)
Honda CB500 (1994-2002)
Honda CB500S Sport (1998-2002)
Honda CBF500 (2004-2006)
Honda CB600F Hornet (1998-2006)
Honda CB600F2 Hornet S (2000-2002)
Honda CBF600N (2004-2006)
Honda CBF600S (2004-2006)
Honda CBR600F CBR600 F (1991-2000)
Honda CBR600F2 (1991-1994)
Honda CBR600F3 (1995-1998)
Honda CBR600F4 (1999-2000)
Honda CBR600SE (1996-1998)
Honda CBR600SJR (1996)
Honda NT650V Deauville (1998-2005)
Honda NV750C (1999)
Honda VFR750F Interceptor (1990-1997)
Honda VT750C VT750 C Shadow (1997-2001)
Honda VT750CD Shadow Deluxe (1998-2003)
Honda PC800 Pacific Coast (1989-1998)
Honda CBR900RR Fireblade (1992-1999)
Honda CBR929RR Fireblade (1996-1999)
Honda VTR1000F Firestorm (1997-2006)
Honda XL1000V Varadero (1999-2002)
Honda CBR1100XX Super Blackbird (1997-1998)
Malaguti Madison 400 (2002-2006)
Peugeot SV250 (2001-2007)
Piaggio X9 250 (2000-2003)
OEM numbers:
31600-GFM-890 / 31600-KPP-861 / 31600-KFG-860 / 31600-KFG-861 / 31600-KFG-862 /
31600-MV4-010 / 31600-MV4-000 / 31600-KGB-901 / 31600-KBR-000 / 31600-KBR-010 /
31600-KVK-901 / 31600-KFG-D11 / 31600-KY2-701 / 31600-MY7-600 / 31600-MY7-305 /
31600-MT4-008 / 31600-KPJ-670 / 31600-KBG-008 / 31600-MV-4-000 / 31600-KY2-702 /
31600-KY2-703
Numbers on the Voltage regulator rectifier:
Shindengen
SH632-12 / SH633-12 / SH638-12 /
SH639-12 / SH609-12 / SH701-12

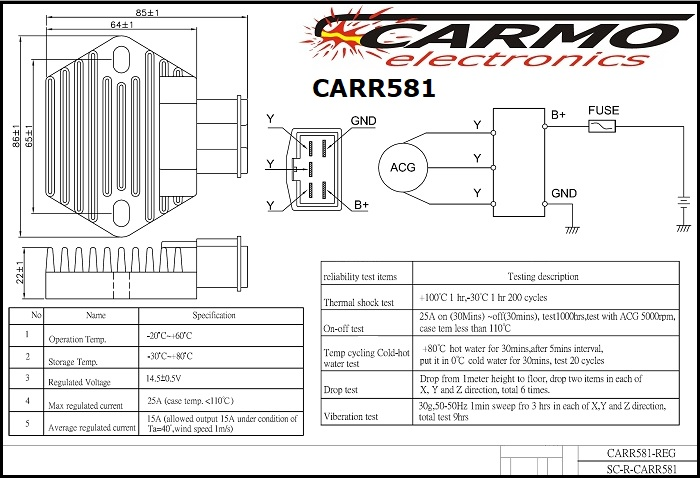

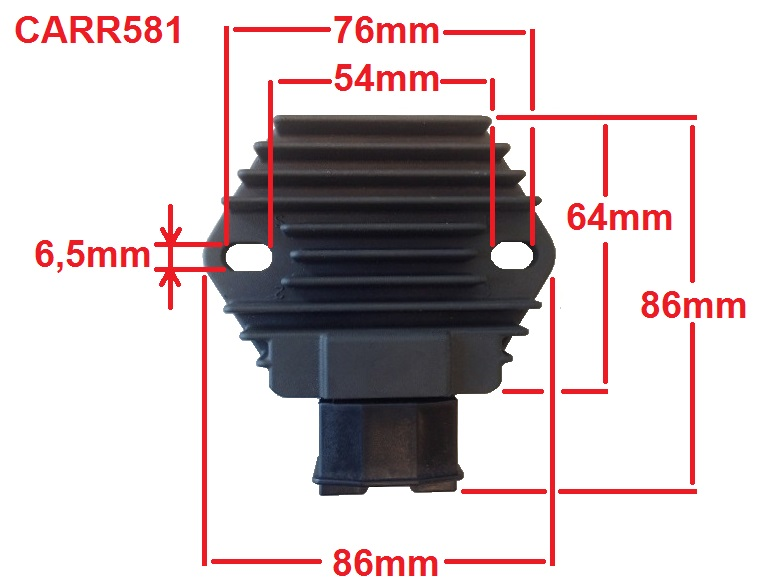

Model: CARR581 Honda regulator rec
000.082.050 S40 35
