CARR381

$189.02

Modern MOSFET Voltage Regulator / Rectifier – CARR381
Also suitable for lithium ion batteries
Plug & Play

We provide a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design.
Most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.

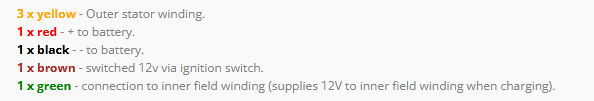

3 x yellow – Outer stator winding.
1 x red – + to battery.
1 x black – – to battery.
1 x brown – switched 12v via ignition switch.
1 x green – connection to inner field winding (supplies 12V to inner field winding when charging).

Vectriq

Category: SKU: CARR381 VQ

Description

This voltage regulator rectifier is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Yamaha XS1 – 1970
Yamaha XS1B – 1971
Yamaha XS2 – 1972
Yamaha XS250 – 1979
Yamaha XS360 – 1976 1977
Yamaha XS400 Maxim – 1977 1978 1979 1980 1981 1982
Yamaha RD400 – 1976 1977 1978 1979
Yamaha XS500 – 1977 1978
Yamaha XS650 – 1975 1976 7977 1978 1979 1980
Yamaha TX650 – 1974 1975 1976
Yamaha XS750 – 1977

OEM numbers:
1L9-81910-50
026000-2790 NIPPONDENSO
1L9-81970-60
DE3804, 9C11Y1
293N6-300E1

Model: CARR381 Yamaha XS regulator
