Yamaha Mosfet Voltage Regulator Rectifier
Description manual electrex CARR351
Motorbike-ROTOR-Voltage-regulator-rectifier-MOSFET

CARR351

$228.61

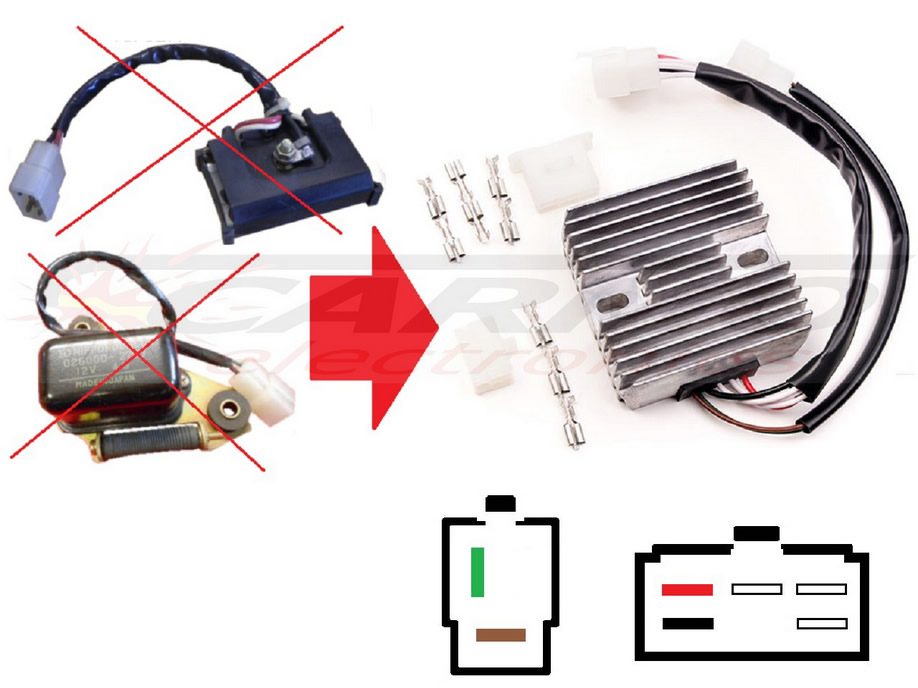

Modern MOSFET Voltage Regulator / Rectifier – CARR351 (CARR-rotor-1)
Also suitable for lithium ion batteries
Plug & Play

We provide a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design.
Most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.

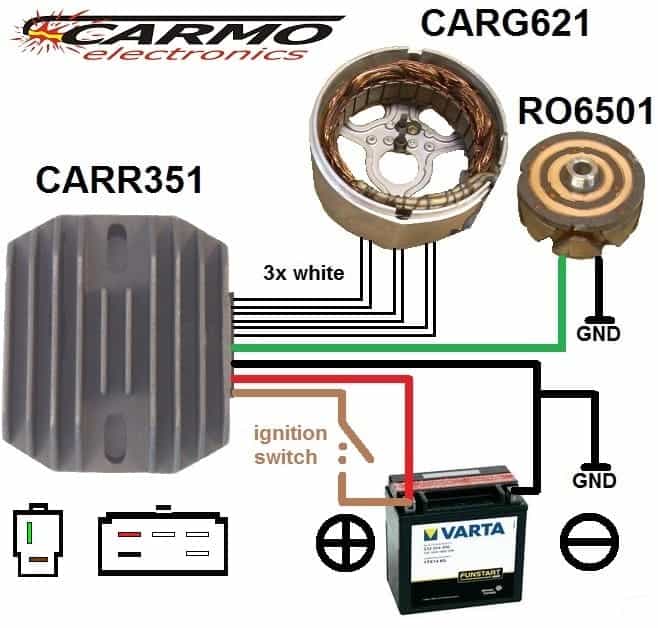

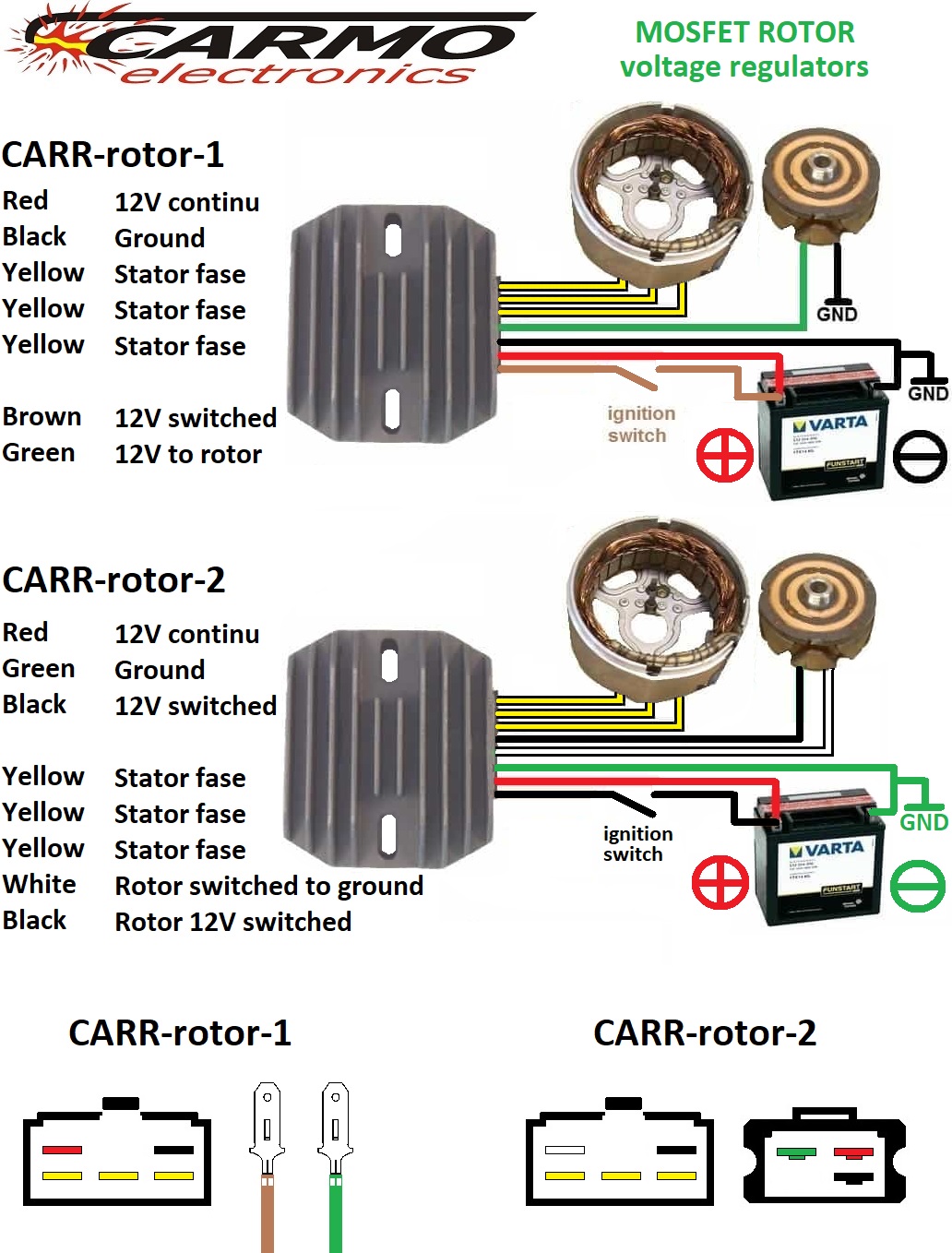

3 x yellow: outer stator winding.
1 x red: + to battery.
1 x black: – to battery.
1 x brown: switched 12v via ignition switch.
1 x green: connection to inner field winding.

Hole space is 50-70mm
Housing 77x77x30 mm

Vectriq

Category: SKU: CARR351 VQ

Description

This voltage regulator rectifier is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Yamaha YR5 1985-1991
Yamaha XS360
Yamaha XS400
Yamaha TX650 1973 1974
Yamaha XS650 (XS-1) 1970
Yamaha XS650 (XS-1B) 1971
Yamaha XS650 (XS-2) 1972
Yamaha XS650 (TX650) 1973 1974
Yamaha XS650 1975 1976 1977 1978 1979
Yamaha XS650S Heritage 1978 1979
Yamaha XS750

OEM numbers:
NIPPONDENSO
026000-2790 / 1L9-81910-50 / 256-81970-11 / 447-81970-10

CARR351 – Yamaha XS650 MOSFET Voltage regulator rectifier
Model: CARR351 Yamaha XS regulator
000.084.050 S60 35
