CARR321

$196.63

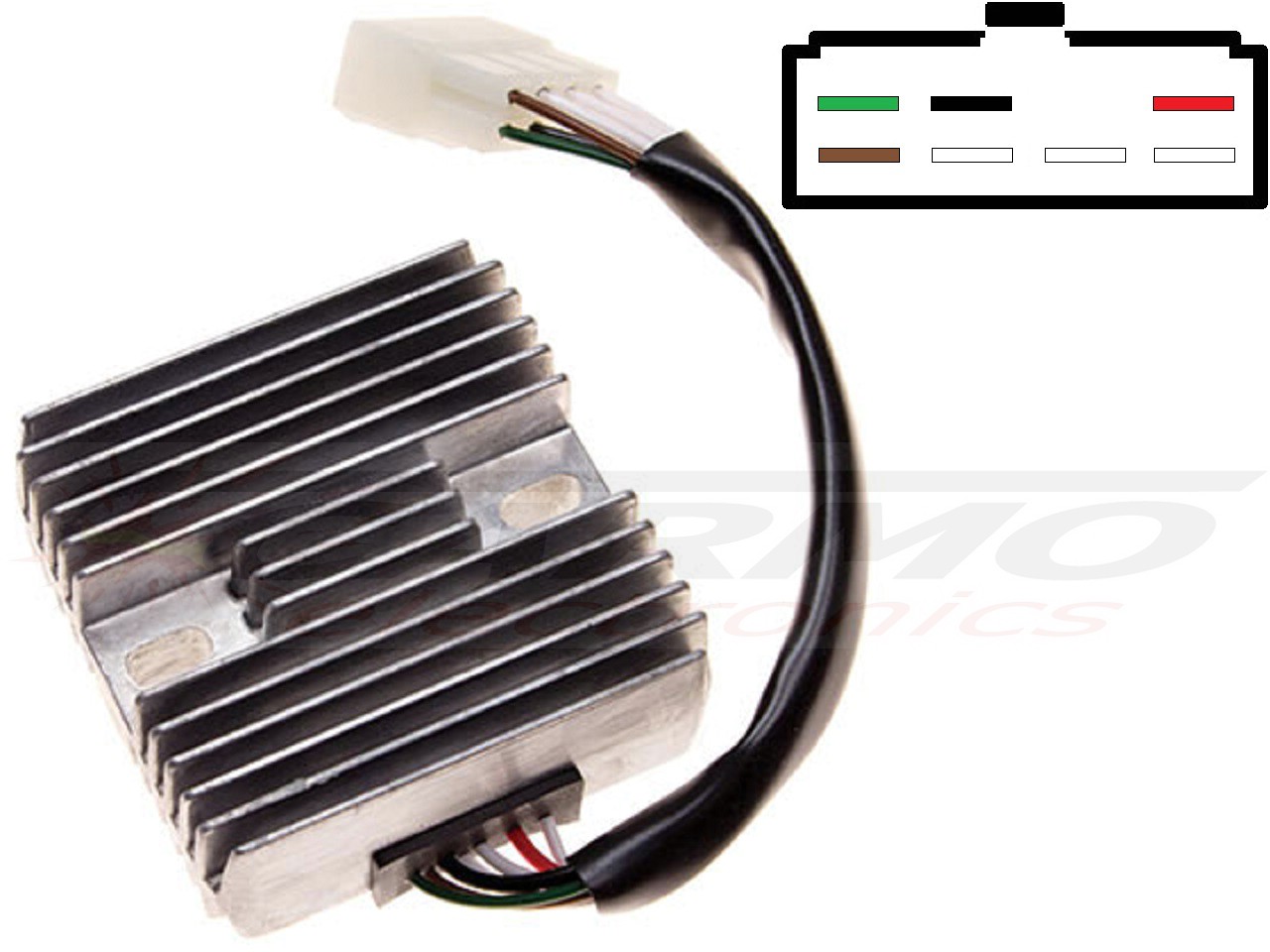

Modern MOSFET Voltage Regulator / Rectifier – CARR321 (rotor-2)
Also suitable for lithium ion batteries.

We provide a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design.
Most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.

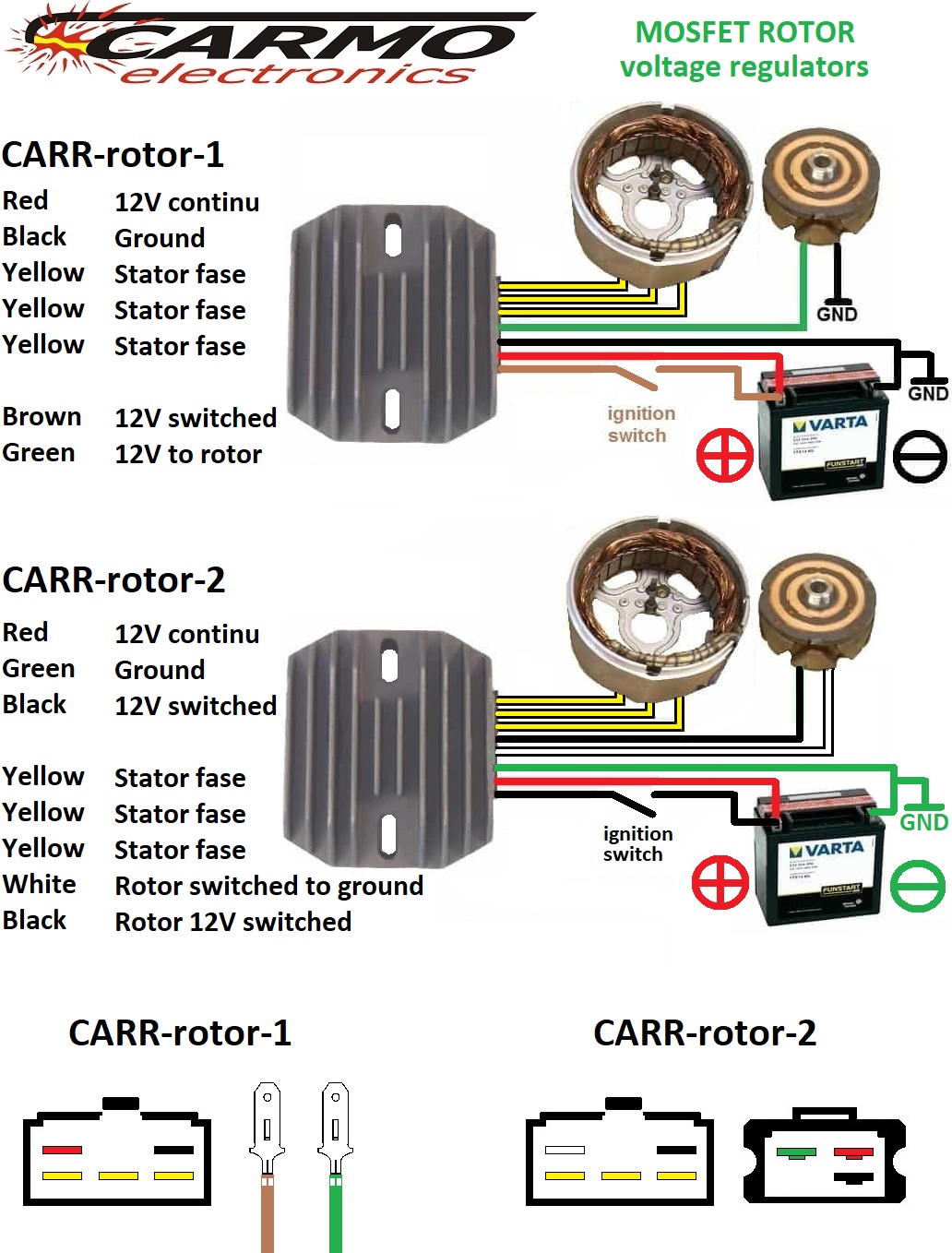

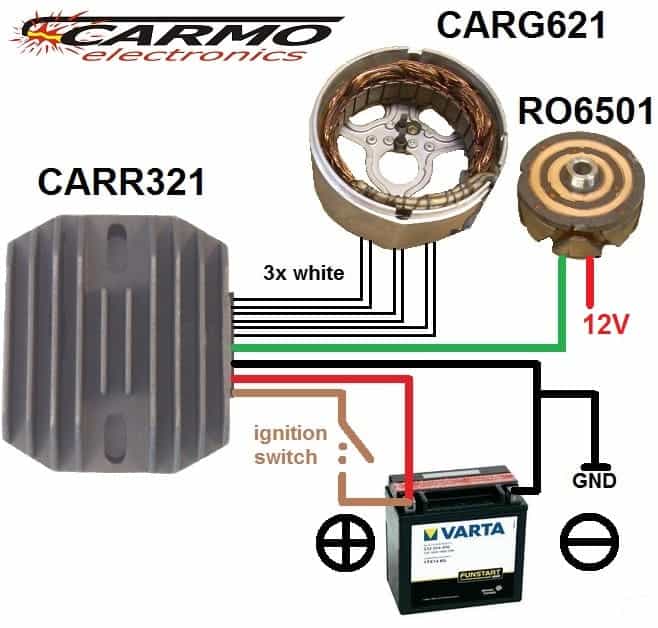

3 x yellow – Outer stator winding.
1 x red – + to battery.
1 x black – – to battery.
1 x brown – switched 12v via ignition switch.
1 x green – connection to inner field winding.

Vectriq

Category: SKU: CARR321 VQ

Description

This voltage regulator rectifier is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Yamaha XJ400 – 1980 1981
Yamaha XS400 Maxim – 1982 1983 1984
Yamaha XS400R Seca – 1982 1983 1984
Yamaha XJ550 Maxim – 1981 1982 1983
Yamaha XJ550R Seca – 1981 1982 1983
Yamaha FJ600 – 1984 1985
Yamaha FZ600 – 1986 1987 1988
Yamaha XJ600 – 1984 1985 1986
Yamaha YX600 Radian – 1986 1987 1988
Yamaha XJ650 Maxim – 1980 1981 1982 1983
Yamaha XJ650L Midnight – 1981
Yamaha XJ650L Seca-Turbo – 1982 1983
Yamaha XJ650R Seca – 1982
Yamaha XS650 – 1980 1981
Yamaha XS650S Heritage – 1980 1981 1982 1983
Yamaha XJ700 Maxim – 1985 1986
Yamaha XJ700 Maxim X – 1985 1986
Yamaha XJ750 Maxim – 1982 1983 1984
Yamaha XJ750M Midnight Maxim – 1983 1984
Yamaha XJ750R Seca – 1983 1984
Yamaha XJ900 – 1983 1984 1985 1986 1987
Yamaha XJ900F – 1985 1986 1987 1988 1989 1990 1991 1992 1993 1994
Yamaha XJ900N – 1985 1986
Yamaha XJ900R Seca – 1983 1984

OEM numbers:
SH233A-12 / SH233 12R-A0 / 4H7-502.B2 S8534A / 2XL-A0 SH606 /
3G1-81960-50 / 3G1-81960-A1 / 12R-81960-A1 / 3G1-81960-51 /
12R-81960-A0 / 2XL-81960-A0 / 4H7-81960-50

CARR321 – Yamaha XS XJ MOSFET Voltage regulator rectifier
Model: CARR321 (rotor-2) Yamaha CX XJ regulator
