CARR311

$196.63

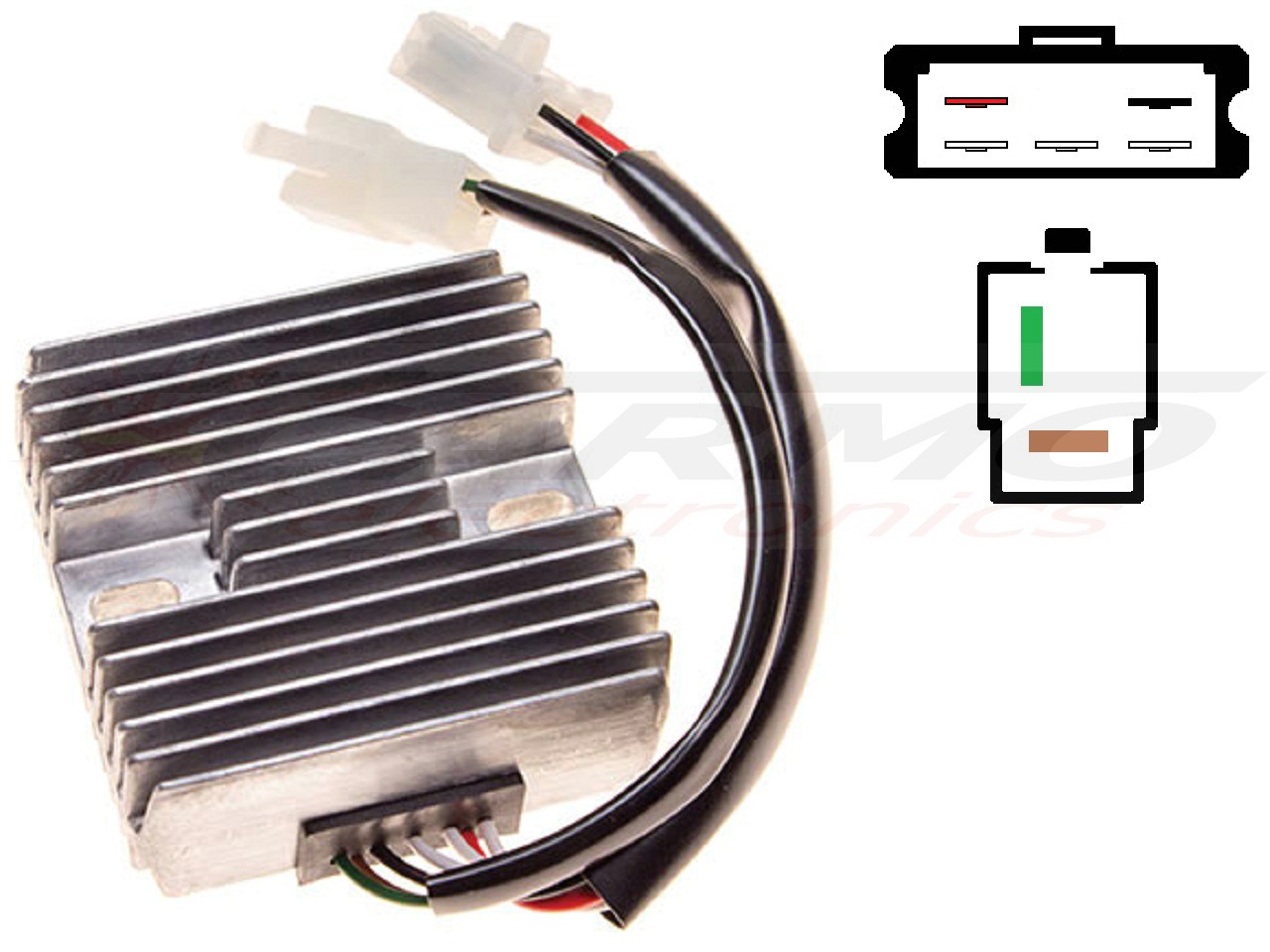

Modern MOSFET Voltage Regulator / Rectifier – CARR311
Also suitable for lithium ion batteries

We provide a wide range of regulator rectifiers to fit new and older motorcycles.
New advanced design.
Most of our regulator rectifiers now feature highly advanced metal ceramic heat transfer and are built using the latest equipment, making them extremely rugged and reliable.

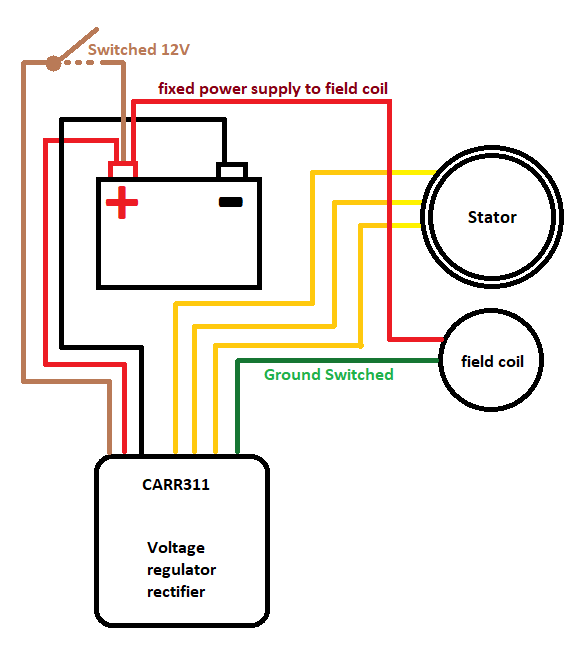

3 x yellow – Outer stator winding.
1 x red – + to battery.
1 x black – – to battery.
1 x brown – switched 12v via ignition switch.
1 x green – connection to inner field winding.

Vectriq

Category: SKU: CARR311 VQ

Description

This voltage regulator rectifier is used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Kawasaki H1 Mach III – 1969
Kawasaki H1-A voltage regulator 1970
Kawasaki H1-B – 1971
Kawasaki H1-C – 1972
Kawasaki H2 Mach IV – 1972
Kawasaki KH500 H1 – 1972
Kawasaki H1-D – 1973
Kawasaki H2-A Mach IV – 1973
Kawasaki H1-E – 1974
Kawasaki H2-B Mach IV – 1974
Kawasaki H1-F – 1975
Kawasaki H1-F – 1975
Kawasaki H2-C Mach IV – 1975
Kawasaki KH5 – 1969-1976
Kawasaki KH500-A8 – 1976
Yamaha XS250 – 1979
Yamaha XS250SE – 1981
Yamaha RD350DX –
Yamaha XS400 Maxim – 1978 1979 1980 1981
Yamaha XS400S Heritage – 1980 1981 1982
Yamaha XS500 – 1976 1977 1978 1979
Yamaha XS750 – 1978 1979
Yamaha XS750S – 1978 1979
Yamaha XS850 – 1980 1981
Yamaha XS850L Midnight Special – 1980 1981
Yamaha XS850S Special – 1980 1981
Yamaha XS1100 – 1978 1979 1980 1981
Yamaha XS1100L Midnight Special – 1980 1981
Yamaha XS1100R – 1981
Yamaha XS1100S – 1979 1980 1981

OEM numbers:
21066-1036
1T4-81960-92 / 1T4-81960-A0
1T4-81960-A2 / 1T4-81960-91
2L0-81910-50 / 1L9-81970-60
2G7-81910-50 / 371-81910-10
1A0-81970-60
SH233-12-1T4
SH233 Shindengen

CARR311 – Yamaha XS Kawasaki KH500 MOSFET Voltage regulator rectifier
Model: CARR311 Yamaha XS KH regulator
000.082.050 S40 35
