Description
This voltage regulator rectifier can be used in the models below.
Please note that this (small) list is for reference use only.
We do our best to keep this up-to-date:
Ducati 125
Ducati 175
Ducati 250
Ducati 350
Ducati 450

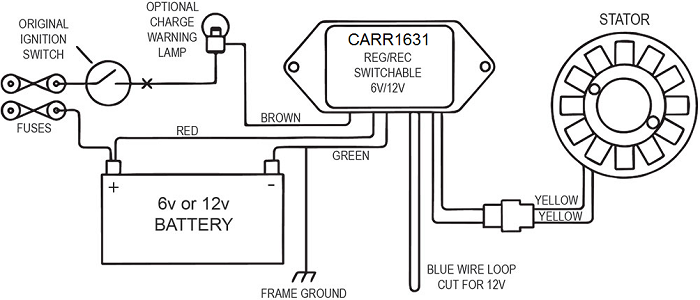

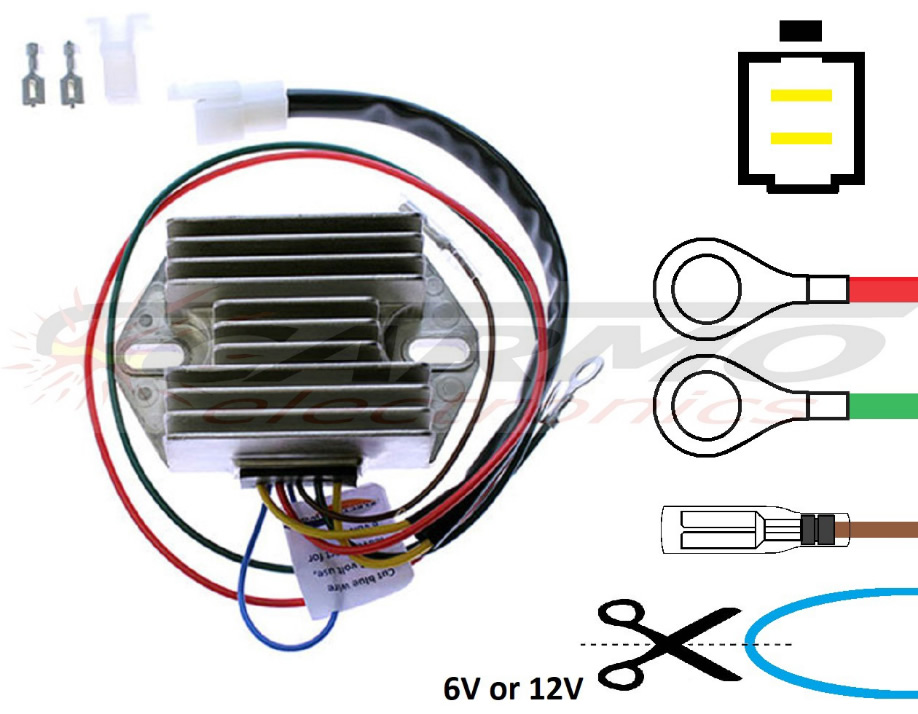

Switchable 6v or 12v with battery charge indicator output –
Cut blue wire for 12v use, leave intact for 6v use.
Specifically designed for Ducati singles using the original 40w/60w alternator or when supplied with our complete kits with 120w output.
MOSFET circuit type for maximum efficiency.
Hole spacing 90mm and low profile casing depth of 20mm allows direct fitment for most models under the seat.
Model: CARR1631 6V 12V regulator
000.089.050 S60 35
